Competition Intercooler Kit for Honda Civic Type R FK2

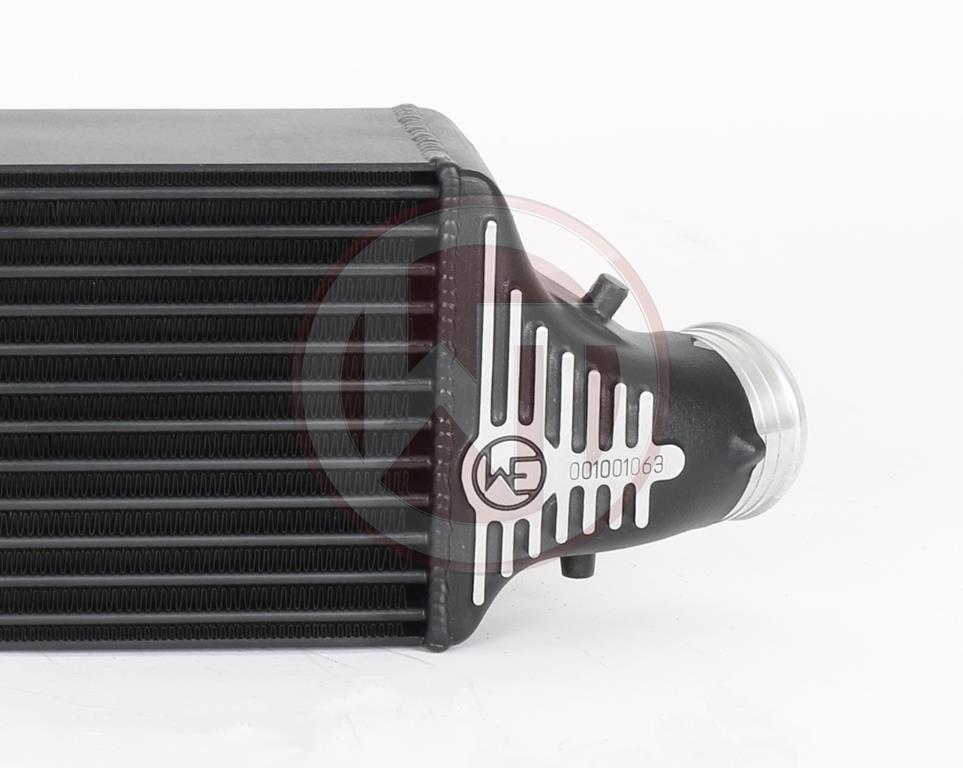

The high performance intercooler has the following core dimension (650mm x 175mm x 110mm) and thus offers a 23% larger cooling surface and 101% more charge air volume compared to the original intercooler. The newly developed competition core granted the adjacent components, for example water cooler, sufficient airflow and is also very light. The end tanks of the intercooler are made of cast aluminium and have been optimised under flow analysis in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! Inlet 65mm Outlet 70mm
Cooling Surface 924cmﾲ
Cooling Surface 1137,5cmﾲ
2 silicone hose
4 hose clamps
